Capri ECP - Plastic industrial cable glands

Versatile plastic industrial cable glands ECP allows the connection of non-armoured cables. It is provided with ISO or Pg threads.

The PVC sealing ring achieves both an IP68 tightness on the outer sheath of the cable as well as a perfect tensile strength.

In addition, the colour of the sealing ring is different according to the size of the cable gland which allows quick and easy identification. With an operating temperature range of -5°C to +70°C, the ECP range fully meets the current needs for cable entries management in industrial environments.

Capri UNICAP - Plastic industrial cable glands

The Capri UNICAP is a versatile plastic cable gland for use in various industrial and residential applications with non-armored round cables. It features an extended operating temperature range compared to simple plastic glands in the range of -20 °C to +100 °C and is rated to IP64 for ultimate protection from dust and water. Available in ISO and PG threads and conforming to EN62444 this gland is available as stand-alone or kitted with relevant accessories.

Capri EUROCAP - Plastic industrial cable glands

Versatile plastic industrial cable glands EUROCAP allows the connection of non-armoured cables. It is provided with ISO or Pg threads. The neoprene sealing ring achieves both an IP68 tightness on the outer sheath of the cable as well as a perfect tensile strength. The cable gland, manufactured from polyamide 6.6, complies with the requirements of the UL94 V0 classification. With an operating temperature range of -40°C to +100°C, the EUROCAP range meets harsh industrial environments constraints.

Capri NEWCAP - Metallic industrial cable glands

Range of metallic industrial cable glands NEWCAP allows the connection of non-armoured cables or steel wire braided (SWB) armoured cables, which makes it perfectly suitable for EMC purposes. It is provided with ISO or Pg threads. Discover our 2 versions of NEWCAP cable glands and their features: NEWCAP MS and NEWCAP CT. The NEWCAP MS range offers the extra feature of enabling multicable or flat cable securing.

Raxton Metallic adaptors & reducers

Raxton Adaptors & reducers provide a mean of connection between dissimilar thread forms or sizes. Both offer Exd flameproof and Exe increased safety protection. The Exd / Exe reducers effectively reducers.

BBA4613Y

Eaton Raxton BB Reducer, 1 1/2″ NPT Male x M25 Female, Brass, Unplated

BBA4722YXN

2″NPT X PG11 M-F REDUCER BRASS N/P EXD/E.

BBA4614Y

Eaton Raxton BB Reducer, 1 1/2″ NPT Male x M32 Female, Brass, Unplated

BJM1611EU

Eaton Raxton BJM Reducer,M50 Male x M16 Female,Glass-filled Nylon,Unplated

ABE2112Y

Eaton Raxton BB Reducer, 1″ NPT Male x M20 Female, Brass, Electroless Nickel

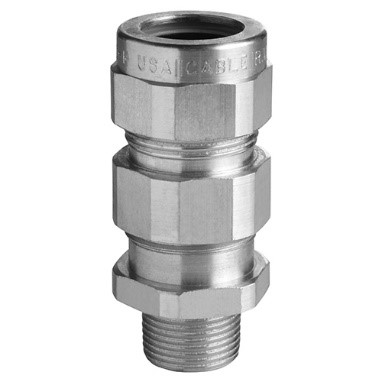

TMCX II Armored Glands | Explosionproof | Eaton

TMCX II explosionproof cable glands from Eaton’s Crouse-Hinds Division are used to terminate armored barrier, non-armored barrier and TECK armored cable in hazardous locations. Its unique design feat.

TECK Armored Gland

TECK cable glands from Eaton’s Crouse-Hinds Division are listed for use with TECK corrugated cable, or interlocked steel or aluminum cable. TECK glands provide a means to terminate at junction boxes.
